Modules

The classes and files for each module are listed below.

phosim

This module is a high-level module to use other modules.

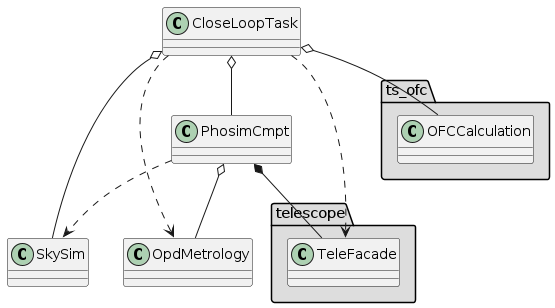

@startuml package "telescope" #DDDDDD { class TeleFacade } package "ts_ofc" #DDDDDD { class OFCCalculation } PhosimCmpt ..> SkySim PhosimCmpt o-- OpdMetrology PhosimCmpt *-- TeleFacade CloseLoopTask o-- SkySim CloseLoopTask o-- OFCCalculation CloseLoopTask o-- PhosimCmpt CloseLoopTask ..> TeleFacade CloseLoopTask ..> OpdMetrology @enduml

Figure 1 Class diagram of phosim

  • PhosimCmpt: High-level class to use the module of ts_phosim.

  • OpdMetrology: OPD related metrology.

  • SkySim: Sky simulator to add the stars.

  • CloseLoopTask: Close loop task to run the simulation with PhoSim.

phosim.telescope

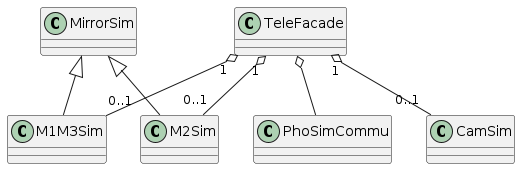

@startuml MirrorSim <|-- M1M3Sim MirrorSim <|-- M2Sim TeleFacade o-- PhoSimCommu TeleFacade "1" o-- "0..1" CamSim TeleFacade "1" o-- "0..1" M1M3Sim TeleFacade "1" o-- "0..1" M2Sim @enduml

Figure 2 Class diagram of phosim.telescope

  • PhosimCommu: Interface to PhoSim.

  • CamSim: Camera distortion correction.

  • MirrorSim: Parent class of M1M3Sim and M2Sim classes.

  • M1M3Sim: M1M3 mirror distortion of gravity and temperature gradient.

  • M2Sim: M2 mirror distortion of gravity and temperature gradient.

  • TeleFacade: Telescope facade pattern that intergate the correction of camera and mirror distortion correction to PhoSim.

phosim.utils

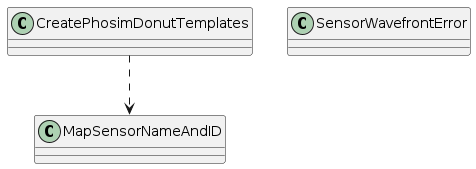

@startuml CreatePhosimDonutTemplates ..> MapSensorNameAndID class SensorWavefrontError @enduml

Figure 3 Class diagram of phosim.utils

  • PlotUtil: Plot utility functions.

  • Utility: Enums and functions used in this module.

  • MetroTool: Metrology related functions contain the atmosphere model.

  • CreatePhosimDonutTemplates: Create donut templates on camera detectors using Phosim. See here for more information on generating Phosim donut templates.

  • SensorWavefrontError: Sensor wavefront error class. This class contains the information of sensor Id and related wavefront error.

  • MapSensorNameAndId: Map the sensor name and Id class to transform the name and Id with each other.
